Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

Place of Origin : China

Brand Name : RD

MOQ : 1

Price : $21,300

Machine Type : Pick and Place Machine

Application : SMT LED Assembly Line

Product name : pick and place machine

Type : Semi automatic

Name : Linear LED light source pick and place machine

Marketing Type : pick and place machine for pcb assembly

Usage : SMT Production Assembly Line

Contact Now

Product Introduction

Machine features

Japanese original grinding screw, with long service life, low wear, and strong stability; Dual motor electronic feeder with built-in vacuum pump, no need for external air source; Each group of mounting heads independently controls the rotation angle, resulting in higher mounting eﬃciency; Each nozzle corresponds independently to a 1 megapixel ﬂying camera for visual correction; 1500mm platform, PCB boards within 500mm can be recycled for production without the need for shutdown;

Work video

Product Parameters

Model No	RD-ZT6V	RD-ZT8V	RD-ZT10V	RD-ZT12V
Number of mounting heads	6 heads	8 heads	10 heads	12 heads
Feeder Station	23 stations	27 stations	30 stations	30 stations
Optimal placement speed	40000 chips/h	50000 chips/h	60000 chips/h	70000 chips/h
Machine weight	Approximately 950KG	Approximately 1600KG
External dimensions	2000mm long × 1300mm wide × 1450mm high
Height of Attachable Components	<8mm
Maximum mounting plate size	1500mm in length ×420mm in width/can be customized non-standard 1500mm in length × 600mm in width
Substrate transfer method	Platform style manual replacement of PCB board
Machine System	Independently developed operating system
Positioning method	Visual automatic MARK points
Correction of suction error by flying swatter	Each nozzle corresponds independently to a 1 megapixelflying camera for visual correction
Programming method	Visual camera positioning programming/Excel format file coordinate import
Input powerlvoltage	AC220V/50HZ(operating power approximately 2KWH)
Mountable components	Beads,resistors,capacitors,ICs,teminals,diodes,etc.above 0603

Product Details

Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

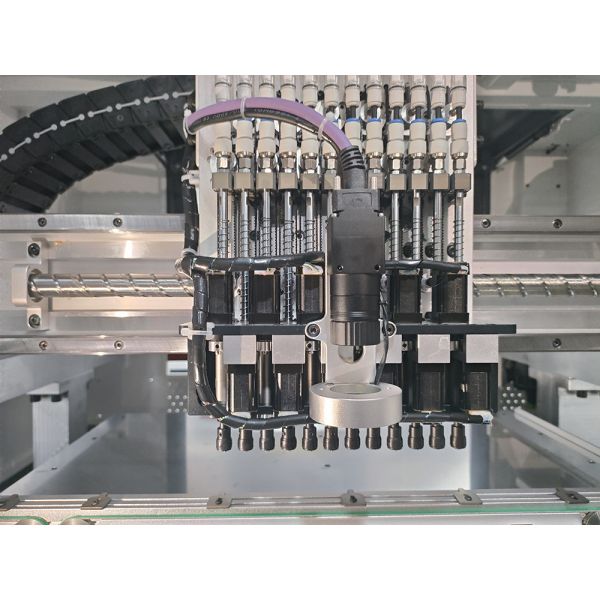

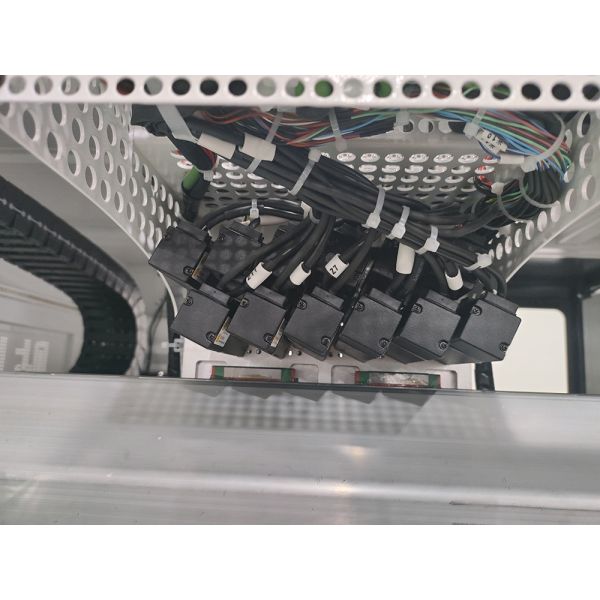

Each placement head is equipped with an independent camera motor

(i.e., an independent lens/zoom component in the "on-the-fly alignment" vision system), each with its own independent camera motor, making it one of the "ultimate configurations" for high-end precision electronics manufacturing. Through a revolutionary design of hardware parallelization, it solves the fundamental contradiction between efficiency and precision that cannot be resolved at the software level. Parallel vision processing: This is the most significant advantage. The 12 placement heads can simultaneously and independently capture images and perform recognition calculations of the components they have picked up while in motion. No waiting, no queuing.

True "on-the-fly alignment": The component recognition process is 100% synchronized with the movement of the placement head. As
the placement head moves from the pick-up position to the PCB placement position, its built-in camera completes the component
recognition, positioning, and angle calculation along the way. Upon reaching the target point, placement occurs immediately,
achieving "zero" visual waiting time.

8 PLACEMENT HEAD

SIndependently control the rotation Angle, 50000chip/h

10 PLACEMENT HEAD

SIndependently control the rotation Angle, 60000chip/h

12 PLACEMENT HEADS(OPTION)

Independently control the rotation Angle, 70000chip/h

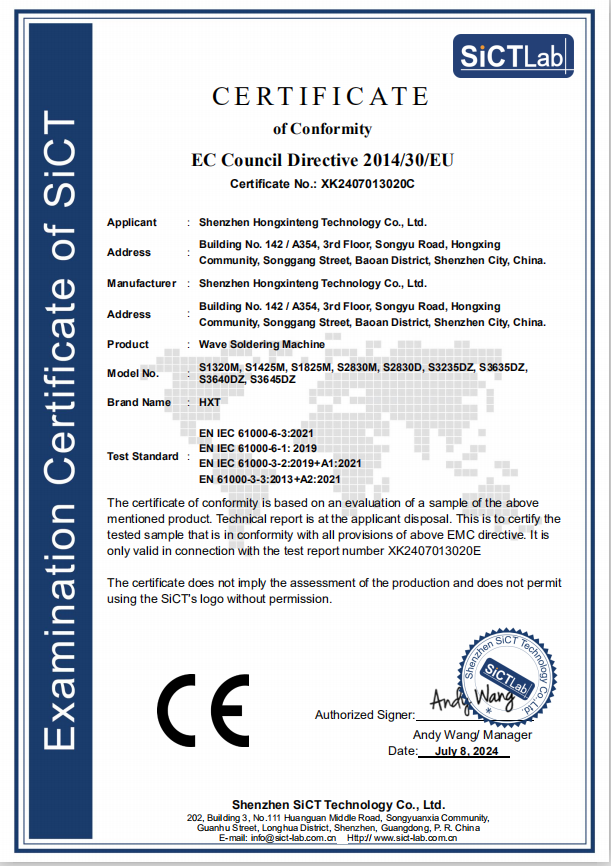

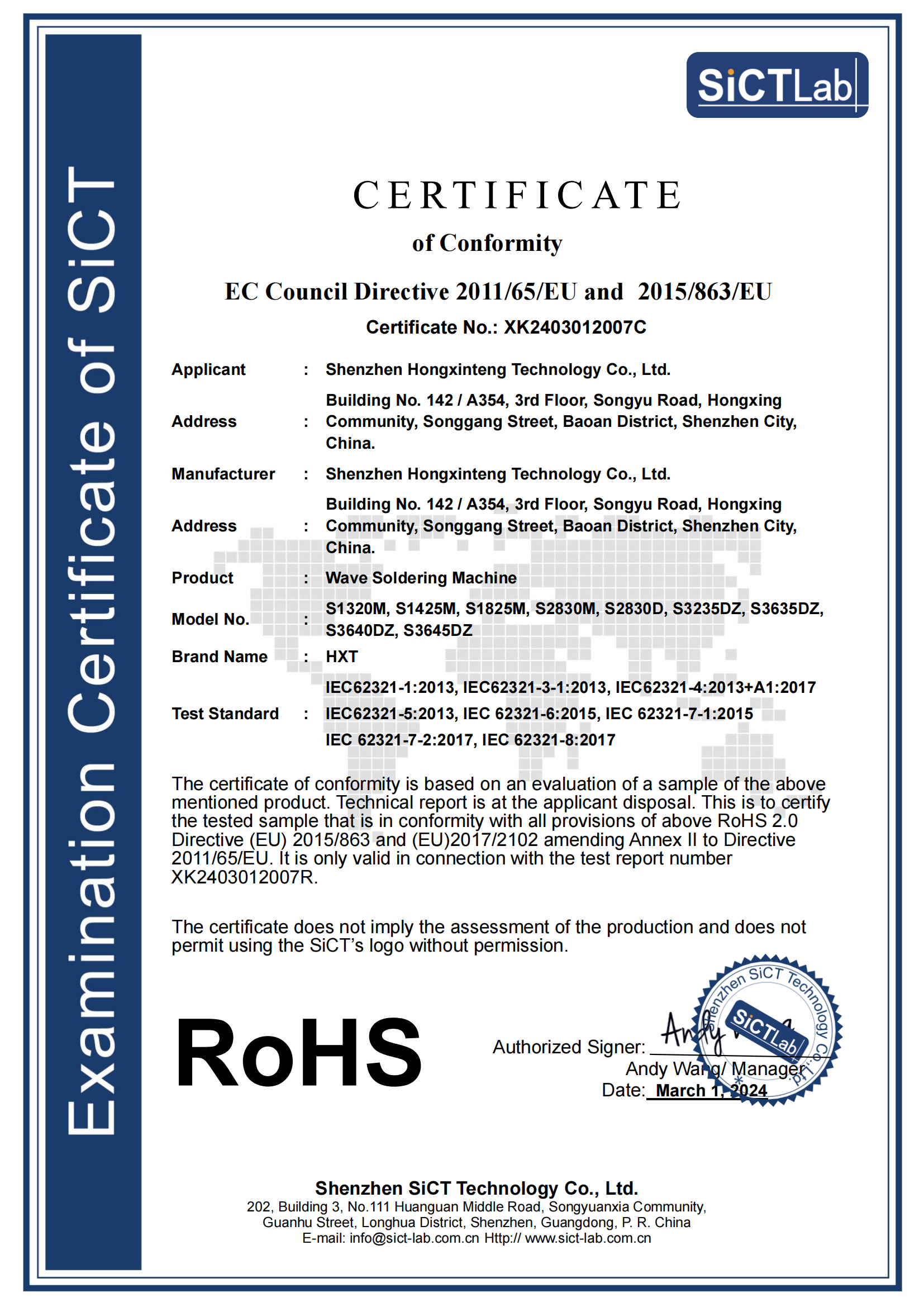

Certificate

Application

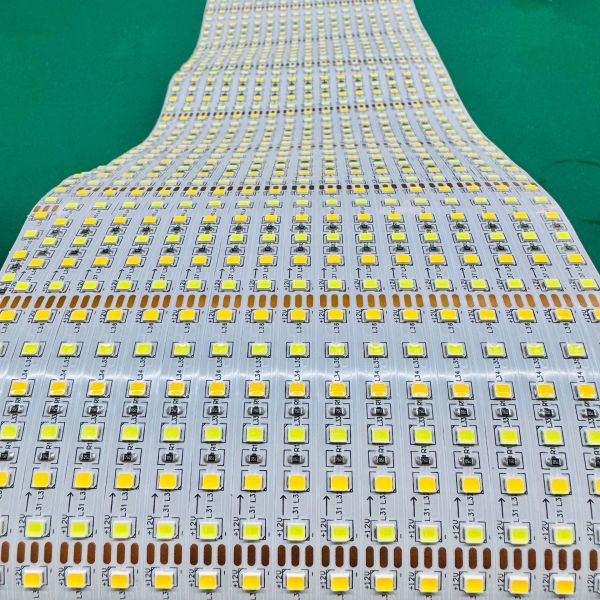

Suitable for: ﬂuorescent tubes, soft light strips, ﬂat panel lights, outdoor lights, ceiling lights, bulbs, terminals, etc.

FAQ

Q1. This is the first time I use this kind of machine, is it easy to operate?
A: There is an English manual and guide video that show you how to use machine. We also can provide engineers to your factory for
your installation training. If you still have any question, please contact us by e-mail / Skype/ phone / trade manager online
service.

Q2: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty and after-sales for life.

Q3. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG , we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Q4. How to proceed an order for SMT Loader machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the details and places deposit for formal order.
Fourthly We arrange the production.

Q5. MOQ ?
1 set machine, mixed order is also welcomed.

Q6. How do you ship the goods and how long does it take to arrive?
A: Ship by Sea, CIF, DDP. It takes 25-35 days to arrive.

Q7. What about the lead time?
A: Stock is 3-7 days, 15-25 working days for mass production.

Q8. What is your payment method?
A: 30% Advance TT, 70% TT When the Goods are ready for Shipment.
